AC 100-240V SINO SDS2MS Digital Readout System SDS2MS Multifunctional

SINO Economy 2 Axis LED Digital Readout System DRO SDS2MS

LED DRO SDS2MS is one of the SDS2 series digital readout.

That is an economy version of SDS6 series digital readout.

It also employs the newest 16 bits SCM technology and is allowed to input the high frequency of A/B signals up to 5MHz.

That's good enough for most of 2 axis display requirement, like the high precision coordinate boring machine, floor boring machine, grinding machine, lathe, milling machine and so on.

The plastic case is try to make the weight ligher to save more transportation cost.

Upgraded Functions:

1. The calculator function:

SDS2 series can change the decimal digits to be three, four or five digits to improve the calculating precision.

2. Non-linear error compensation:

The system has maximum 40 sections non-linear error compensation to improve the positioning precision.

3. The numbers of decimal digits can be chosen in inch mode:

4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz, US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Max resolution of digital display length: 0.5µm

Min resolution of digital display angle : 0.0001/pulse

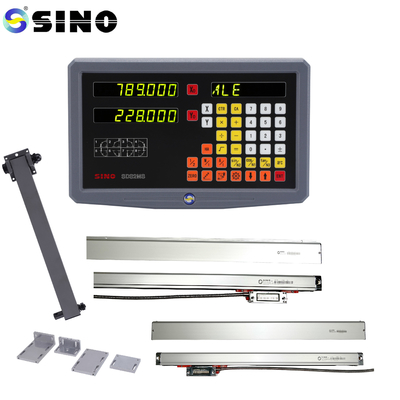

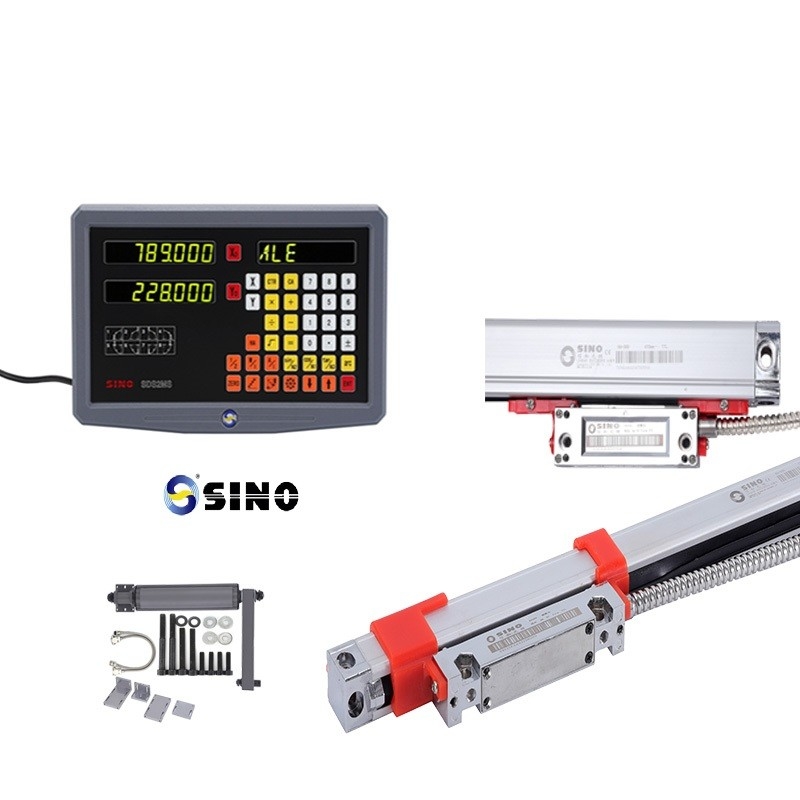

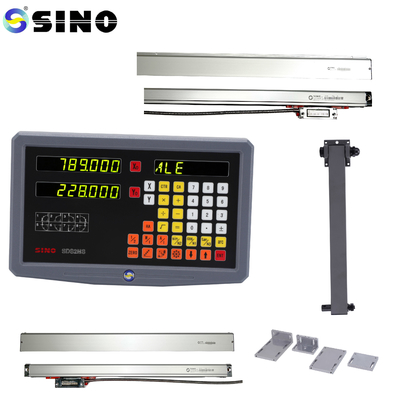

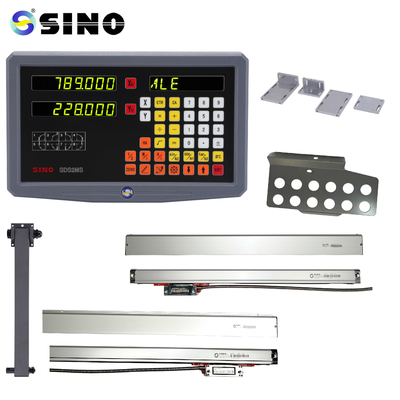

Product image /photos:

The rack in the picture is optioned, not standard product.
